Key Features
- Number of Ports: 5 RJ45 Port
- IEEE 802.3x Flow Control
- Auto-Negotiation - Supports Auto-MDI/MDIX
- Plug and Play
Description
What This Product Does
The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.

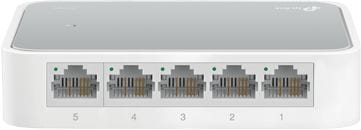

* This TP-Link TL-SF1005D Switch image is for illustration purpose only. Actual image may vary.
Easy to Use
The auto features of this ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
* This TP-Link TL-SF1005D Switch image is for illustration purpose only. Actual image may vary.
Specifications
Performance Features
| Jumbo Frame Support | 2K Jumbo Frame |
|---|---|
| Packet Forwarding Rate | 10/100Mbps at Half Duplex 20/200Mbps at Full Duplex |
| Switching Capacity | 10/100Mbps |
General Information
| Model | TL-SF1005D |
|---|---|
| Network Switch Type | Unmanaged Switch |
| Brand | TP-Link |
Technical Specifications
| IEEE Standards | 802.3 (Ethernet) , 802.3u (Fast Ethernet), 802.3x |
|---|---|
| Fan Quantity | Fanless |
Network Switch Usage Details
| Switch Mounting Type | Back Rackmounting |
|---|---|
| Installation Method | Plug and Play |
Power Details
| Maximum Power Consumption | 1.87 Watt |
|---|---|
| Maximum Heat Dissipation | 6.38BTU/h |
Physical Dimensions
| Colour | White/Grey |
|---|
Additional Features
| Features | Transfer Method: Store and Forward Advanced Functions: Green Technology 802.3X Flow Control Back Pressure Certification: FCC CE RoHs |
|---|
In The Box & Warranty
| In The Box | Power Adapter, Installation Guide |
|---|---|
| Warranty | 1 Year |
Manufacturing & Packing Information
| Customer care address | Reliance Digital, Reliance Retail Limited, 3rd Floor, Court House, Lokmanya Tilak Marg, Dhobi Talao, Mumbai-400 002, Maharashtra, India. |
|---|---|
| Customer care Phone | 1800-889-1055 |
| Customer care email | reliancedigital@ril.com |
| Country of origin | China |
| Name and address of Packer | TP-Link Technologies Co., Ltd South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, China Country of Origin: China |
| Name and address of Manufacturer | TP-Link Technologies Co., Ltd South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, China Country of Origin: China |
| Name and address of Importer | TP-Link India Pvt Ltd, 1, Ambadi Rd, Sai Nagar, Vasai West, Vasai-Virar, Maharashtra 401202 |
| Name of Seller | Reliance Retail Ltd. |
| Month and Year of Commodity First Manufactured/Imported/Packed | October' 2022 |
| Commodity name | Switch |
| Net Quantity | 1N |
| Name and address of Marketed By | TP-Link India Pvt Ltd. Green Industrial Park, Adjacent to Hydro Pure Warehouse, Village – Dongripada, Kaman-Bhiwandi Road, Poman (After Universal Engineering college) Taluka – Vasai District – Palghar, Pin Code – 401208 |
